Dell QLogic QLE2662L Dual Port 16Gb Fibre Channel HBA | PCIe 3.0 x8 LP | QLE2662L-DELL

Dell QLogic QLE2662L Dual Port 16Gb Fibre Channel HBA – QLE2662L-DELL

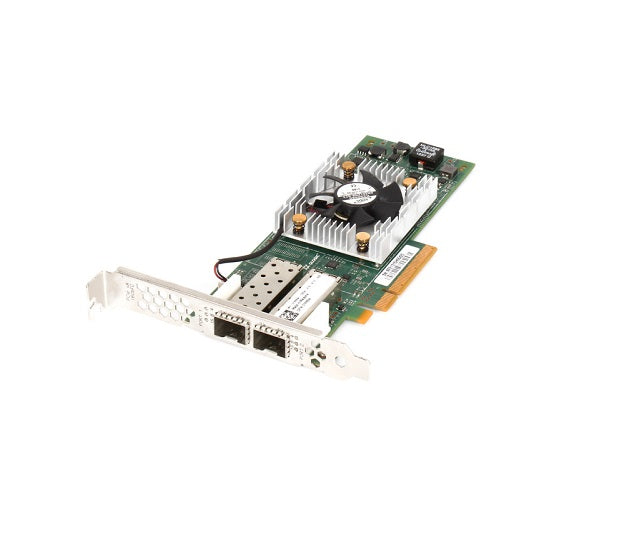

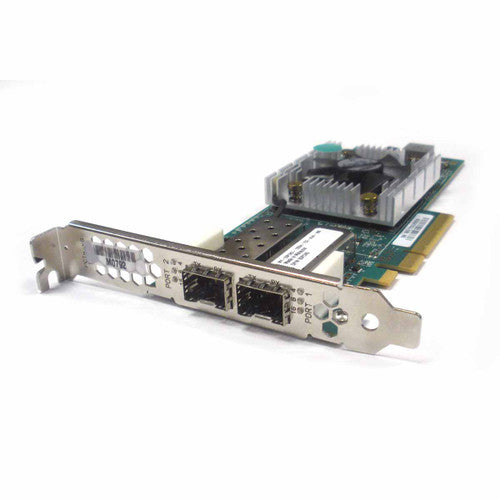

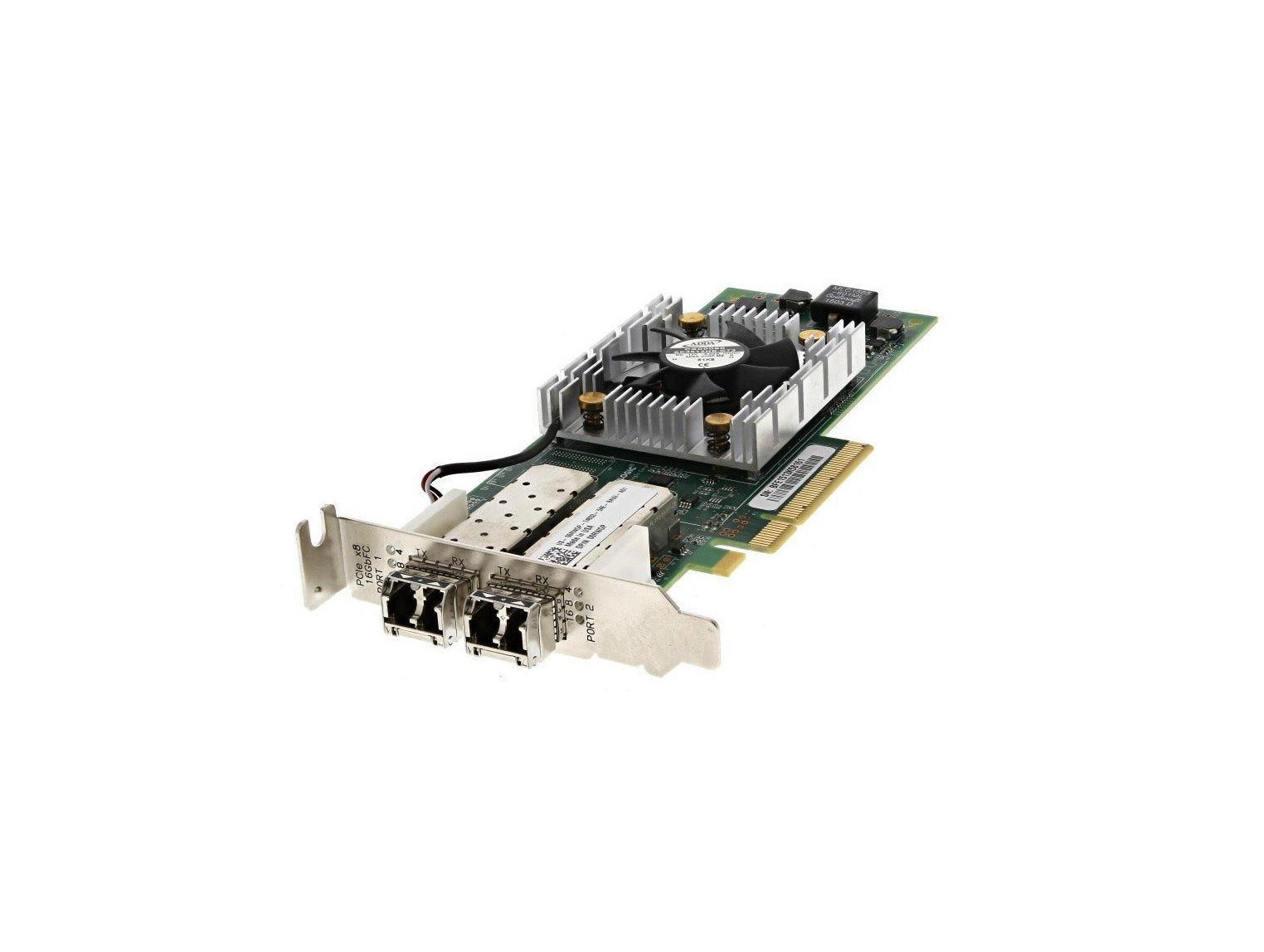

The Dell QLogic QLE2662L (Part# QLE2662L-DELL) is the low-profile variant of the QLE2662 Fibre Channel Host Bus Adapter — a high-performance PCIe 3.0 x8 card engineered for enterprise SAN environments. Featuring two 16Gbps FC ports with SFP+ connectivity, it is purpose-built for space-constrained rack-mount servers and blade enclosures, while delivering the full throughput of the QLogic 2600 Series architecture.

Key Specifications

• Part Number: QLE2662L-DELL
• Alt. Dell Part Numbers: 1KK8W, 6RWGP, 7JKH4, P9J2D, 3PCN3
• OEM Model: QLogic QLE2662L
• Ports: 2 × SFP+ (Dual Port)
• Data Rate: 16Gb/s per port
• Interface: PCI Express 3.0 x8
• Protocols: FCP (SCSI-FCP), FC-Tape, FCoE, iSCSI (via I/OFlex)
• Form Factor: Low-Profile PCIe card (LP bracket only)
• Virtualization: NPIV, T10 PI, VLAN
• Architecture: QLogic 2600 Series — StorFusion™ & I/OFlex™ technology
• Performance: Over 1.2 million IOPS

Compatible Dell PowerEdge Servers

M915, R310, R430, R520, R530, R530XD, R610, R630, R715, R720, R720XD, R730, R730XD, R815, R820, R830, R910, R920, T620, T630 and other servers with a low-profile PCIe 3.0 slot.

Features

• Low-profile form factor — ideal for 1U and blade servers
• Dual-port for redundancy, failover, and load balancing
• I/OFlex™ technology: converts from 16Gb FC HBA to 10GbE CNA (NIC/FCoE/iSCSI)
• Over 1.2M IOPS for latency-sensitive virtualised workloads
• Full investment protection — backwards compatible with 8Gb and 4Gb FC infrastructure
• Advanced management via QConvergeConsole (QCC) and Dell OMSA
• Overlapping Protection Domains (OPD) for maximum data reliability

Contact us for pricing and availability in Qatar.
