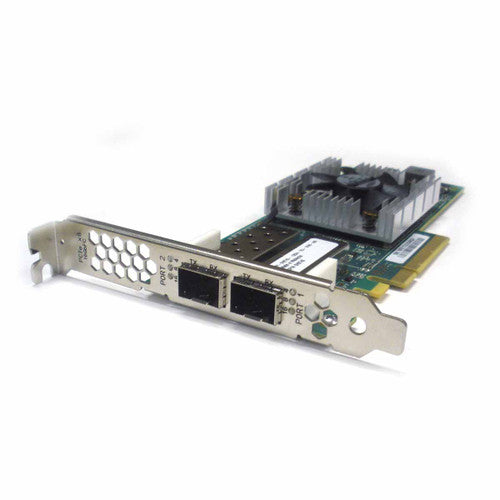

The Dell 403-BBMU is the companion full-height variant in the QLogic QLE2692 family — a dual-port 16Gb/s Fibre Channel HBA with PCIe 3.0 x8 interface, shipped with SFPs and both brackets. Validated for Dell PowerEdge 13th and 14th generation servers, it is interchangeable with 403-BBMQ in most deployments.
Key Specifications
Part Number: 403-BBMU
OEM Model: QLogic QLE2692
Ports: 2 × SFP+ (16Gb Fibre Channel)
Data Rate: 16Gb/s per port
Interface: PCIe 3.0 x8
Power Consumption: 12W max
Form Factor: Full-Height plug-in card (with SFPs & both brackets)
Virtualization: NPIV, QoS
OS Support
Windows Server 2008 R2+, Red Hat Enterprise Linux 6+, SUSE Linux Enterprise Server 11+, VMware ESXi 5.5+
