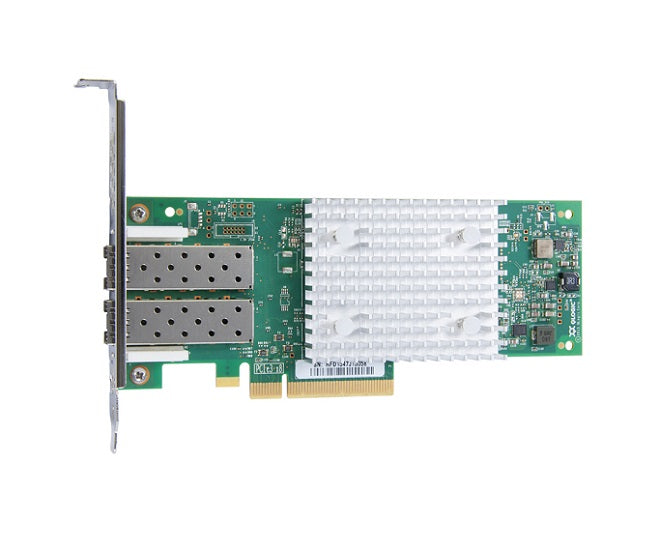

Dell QLogic QLE2742-Dell SanBlade Gen6 Dual Port 32Gb FC HBA | PCIe 3.0 x8 | FC-NVMe

Dell QLE2742-Dell SanBlade Gen 6 Dual Port 32Gb Fibre Channel HBA

The Dell QLE2742-Dell (alt part numbers: 5H4YH, T3TK5) is Dell's OEM version of the QLogic QLE2742 Gen 6 32Gb dual-port FC HBA. Shipped with 2 × SFP modules and validated for Dell PowerEdge servers, it supports FC-NVMe and FCP-SCSI concurrently, making it a future-proof investment for high-performance SAN environments.

Key Specifications

• Part Number: QLE2742-Dell
• Alt Dell Part Numbers: 05H4YH, 0T3TK5
• OEM Model: QLogic QLE2742
• Ports: 2 × SFP (Dual Port) — 2 SFP modules included
• Data Rate: 32Gb/s per port
• Interface: PCIe 3.0 x8 (PCIe 3.1 spec)
• Throughput: 32Gbps line rate per port (maximum)
• Concurrent Logins: 2,048 per port
• Active Exchanges: 2,048 per port
• Boot: BIOS, UEFI
• Protocols: SCSI-FCP, FC-Tape, FCP-2, FC-GS-2/3, FC-PI-5/6

Features

• Dell-validated — supported by Dell Technical Support on PowerEdge systems
• FC-NVMe + FCP-SCSI simultaneous traffic
• Full hardware offloads — minimal server CPU utilisation
• QLogic StorFusion™ with built-in Forward Error Correction (FEC)
• SMI-S and CLI management; backward compatible with 16Gb and 8Gb FC

Contact us for pricing and availability in Qatar.
