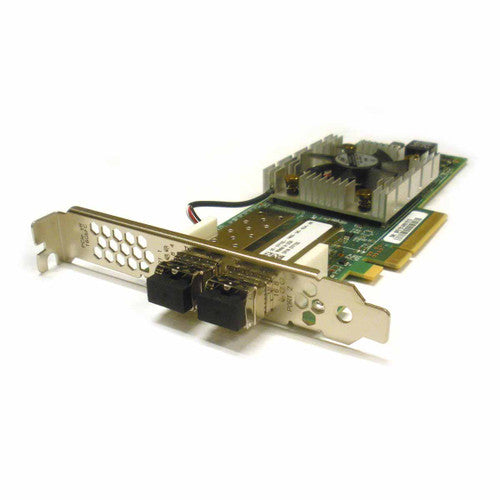

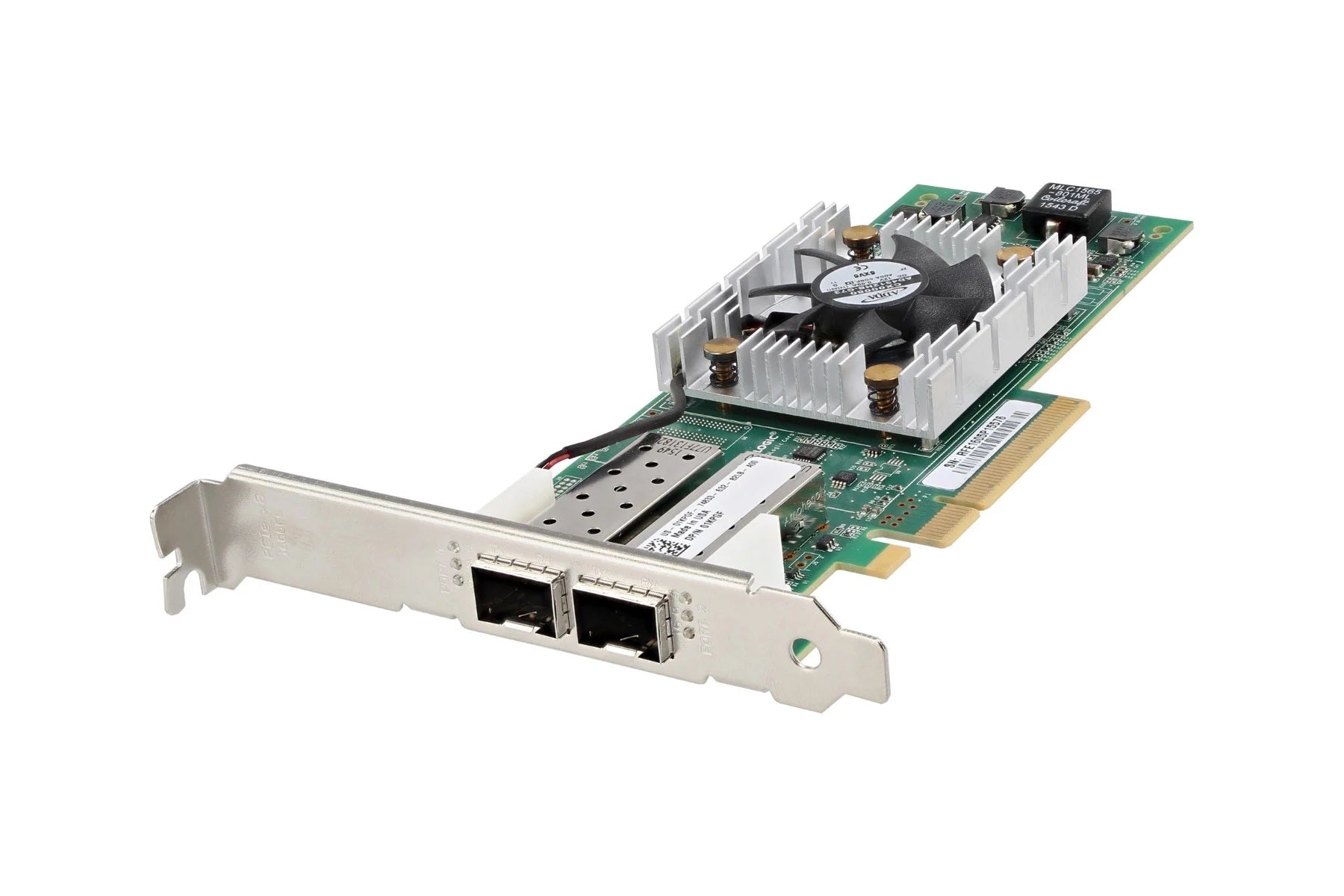

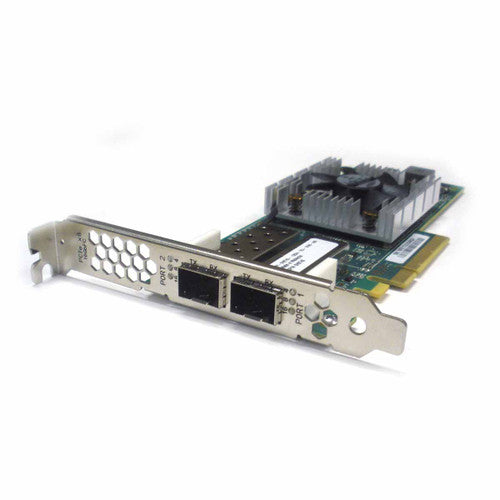

Dell SANBlade QLogic QLE2662 Dual Port 16Gb Fibre Channel HBA | PCIe 3.0 x8 FH | 406-BBBH

Dell SANBlade QLogic QLE2662 Dual Port 16Gb Fibre Channel HBA – 406-BBBH

The Dell SANBlade 406-BBBH is a full-height dual-port 16Gb/s Fibre Channel Host Bus Adapter based on the QLogic QLE2662 chipset. Designed for enterprise data centers, it delivers high-throughput, low-latency SAN connectivity via PCIe 3.0 x8, and is validated for use across the Dell PowerEdge server portfolio. This is the full-height (standard bracket) variant — ideal for tower and standard rack servers with full-height PCIe slots.

Key Specifications

• Part Number: 406-BBBH
• OEM Model: QLogic QLE2662 (SANBlade)
• Ports: 2 × SFP+ (Dual Port)
• Data Rate: 16Gb/s per port
• Interface: PCI Express 3.0 x8
• Form Factor: Full-Height (standard bracket) plug-in card
• Protocols: FC-AL, FC-FS, FCP, FC-Tape, FLOGI, NPIV and full FC standards suite
• Virtualization: NPIV (N_Port ID Virtualization)
• OS Support: Windows Server, Red Hat Enterprise Linux, SUSE Linux, VMware ESXi
• Management: SMI-S, CLI, QConvergeConsole (QCC), Dell OMSA

Compatible Dell PowerEdge Servers

M915, R310, R430, R520, R530, R610, R630, R715, R720, R720XD, R730, R815, R820, R910, R920, T620, T630

Features

• Full-height bracket — fits standard tower and rack server PCIe slots
• Dual-port for maximum redundancy, failover, and load balancing
• 16Gb/s per port for high-bandwidth SAN storage traffic
• NPIV support for efficient multi-tenant and virtualised deployments
• QLogic StorFusion™ technology for advanced diagnostics and performance tuning
• Firmware upgradeable — future-proof investment
• Dell-validated and supported by Dell Technical Support on compatible systems

Contact us for pricing and availability in Qatar.
