HPE Smart Array E208e-p SR Gen10 12G SAS PCIe RAID Controller | No Cache | 804398-B21

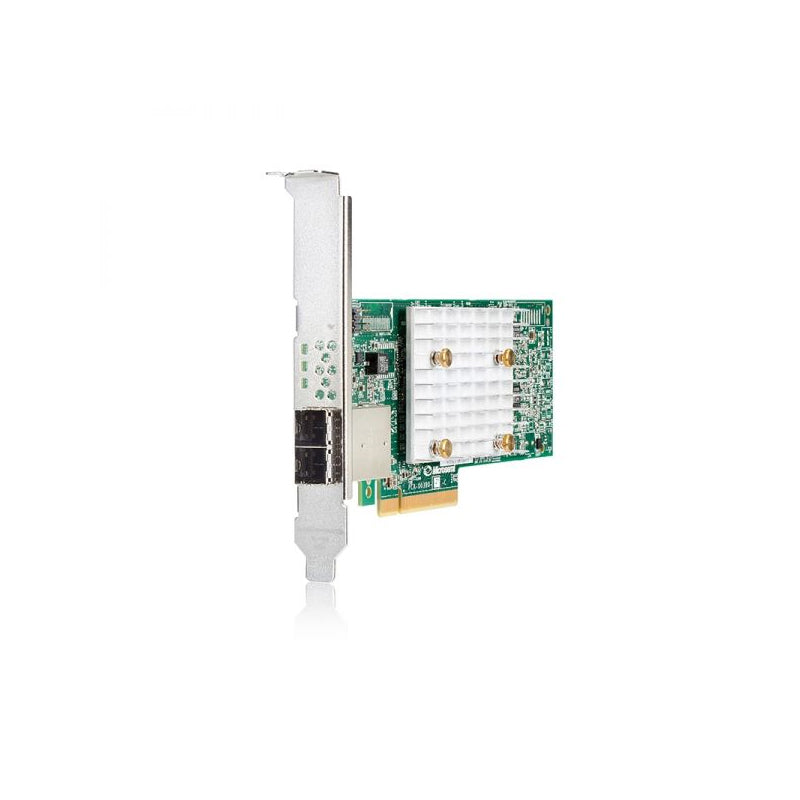

HPE Smart Array E208e-p SR Gen10 12G SAS PCIe Plug-in Controller – 804398-B21

The HPE Smart Array E208e-p SR Gen10 is a cost-effective external RAID controller for HPE ProLiant Gen10 servers. With 8 external SAS lanes and no onboard cache, it delivers 12Gb/s SAS connectivity to externally attached enclosures while supporting Mixed Mode (RAID + HBA simultaneously) and data-at-rest encryption — ideal for deployments where cache-less simplicity and lower cost are priorities.

Key Specifications

• Part Number: 804398-B21 / 836267-001 / 804400-001
• Interface: PCIe 3.0 x8
• SAS Speed: 12Gb/s SAS / 6Gb/s SATA
• External Lanes: 8 (2 × Mini-SAS HD / SFF-8644 ports)
• Cache: None (cache-less design)
• RAID Levels: 0, 1, 5, 10
• Form Factor: Full or Low-Profile PCIe (configurable)
• Dimensions: 170mm × 70mm × 13mm

Supported Enclosures

HPE D3610, D3710, D6020, MSA 1040, MSA 1050, MSA 2040, MSA 2050

Compatible HPE ProLiant Servers

DL360 Gen10, DL380 Gen10, DL385 Gen10, DL560 Gen10, DL580 Gen10, ML110 Gen10, ML350 Gen10, XL170r Gen10, XL190r Gen10, XL230K Gen10

Features

• Cache-less design — lower cost, lower complexity
• Mixed Mode: RAID and HBA/JBOD simultaneously
• HPE Smart Array SR Secure Encryption (optional license)
• Managed via HPE Smart Storage Administrator (SSA), iLO RESTful API
• UEFI storage configuration tool for scripted deployment

Contact us for pricing and availability in Qatar.
