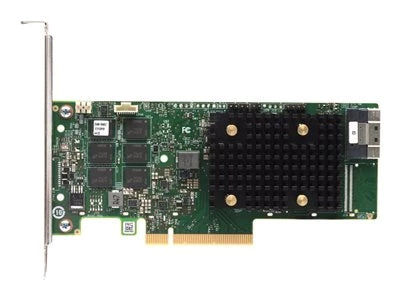

The Lenovo ThinkSystem RAID 940-8i is an 8-port PCIe Gen4 Tri-Mode RAID adapter built on the Broadcom SAS3908 controller (MegaRAID 9560-8i equivalent), supporting SAS, SATA, and NVMe U.3 drives for enterprise ThinkSystem deployments in Qatar and the GCC.
Spec
Detail
Lenovo Part Number
01PE816
Controller Chip
Broadcom SAS3908 (MegaRAID 9560-8i equivalent)
Host Interface
PCIe 4.0 x8
Ports
8 (2x SFF-8654)
Drive Support
SAS, SATA, NVMe U.3 (Tri-Mode)
Cache
4GB with CacheVault Flash Protection
RAID Levels
0, 1, 10, 5, 50, 6, 60
Contact our sales team for a quote and current stock in Doha.
