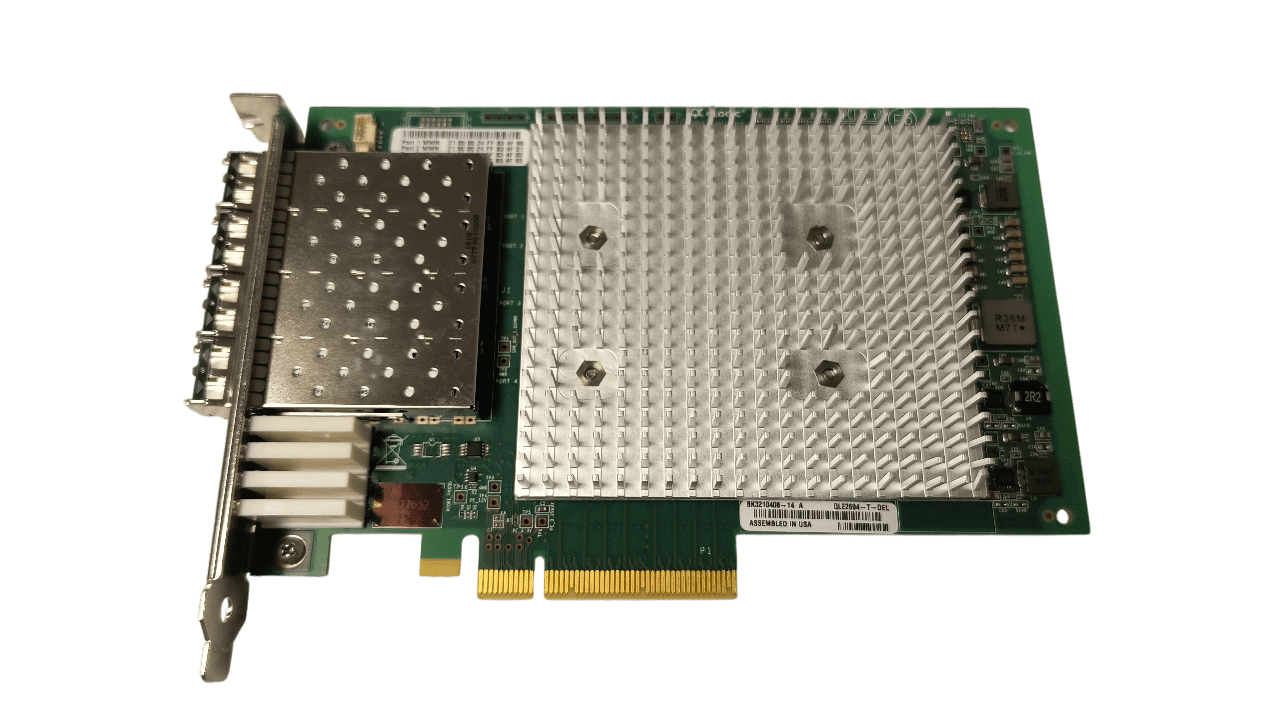

QLogic QLE2694-SR-CK Enhanced Gen5 Quad Port 16Gb Fibre Channel HBA | PCIe Gen3 x8

QLogic QLE2694-SR-CK Enhanced Gen 5 Quad Port 16Gb Fibre Channel HBA

The QLogic QLE2694-SR-CK is the industry's first Enhanced Gen 5 Quad-Port 16Gbps Fibre Channel Adapter. With four 16Gbps FC ports on a single PCIe Gen3 x8 card, it delivers up to 64Gbps total throughput — ideal for high-density virtualised environments, all-flash arrays, and demanding HPC storage workloads. Features up to 650K IOPS per port with just 3W power consumption per port.

Key Specifications

• Part Number: QLE2694-SR-CK
• Ports: 4 × SFP+ (Quad Port, SR optic)
• Data Rate: 16Gb/s per port (64Gb/s total)
• Interface: PCIe Gen3 x8
• Form Factor: Full-Height (standard) PCIe card
• Performance: Up to 650K IOPS per port
• Power: ~3W per port (industry-leading efficiency)
• Concurrent Logins: 2,048 per port
• Active Exchanges: 2,048 per port
• Virtualization: NPIV, T10 PI, QoS (CS_CTL)

Enhanced Gen 5 Technology

• Industry's first native quad-port 16GFC adapter
• QLogic StorFusion™ — streamlined provisioning and guaranteed QoS
• Full hardware offloads for minimal CPU impact
• UEFI and BIOS boot support
• Backward compatible with 8Gb and 4Gb FC infrastructure

OS Support

Windows Server, Red Hat Enterprise Linux, SUSE Linux, VMware ESXi, Oracle Linux, CentOS, FreeBSD

Contact us for pricing and availability in Qatar.
