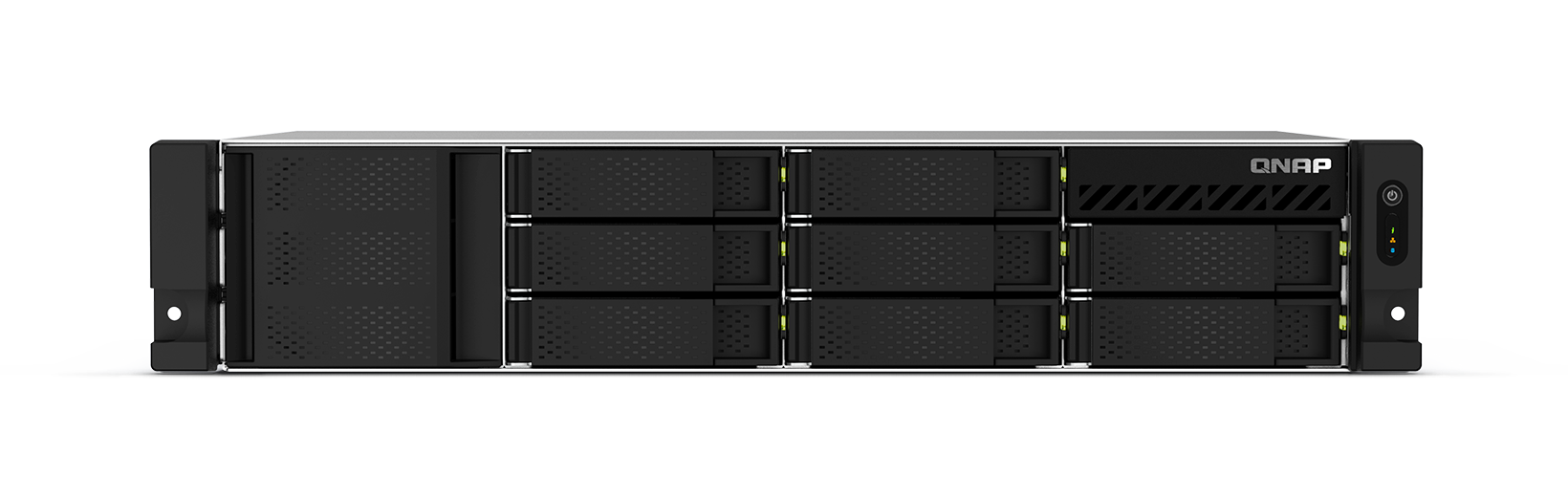

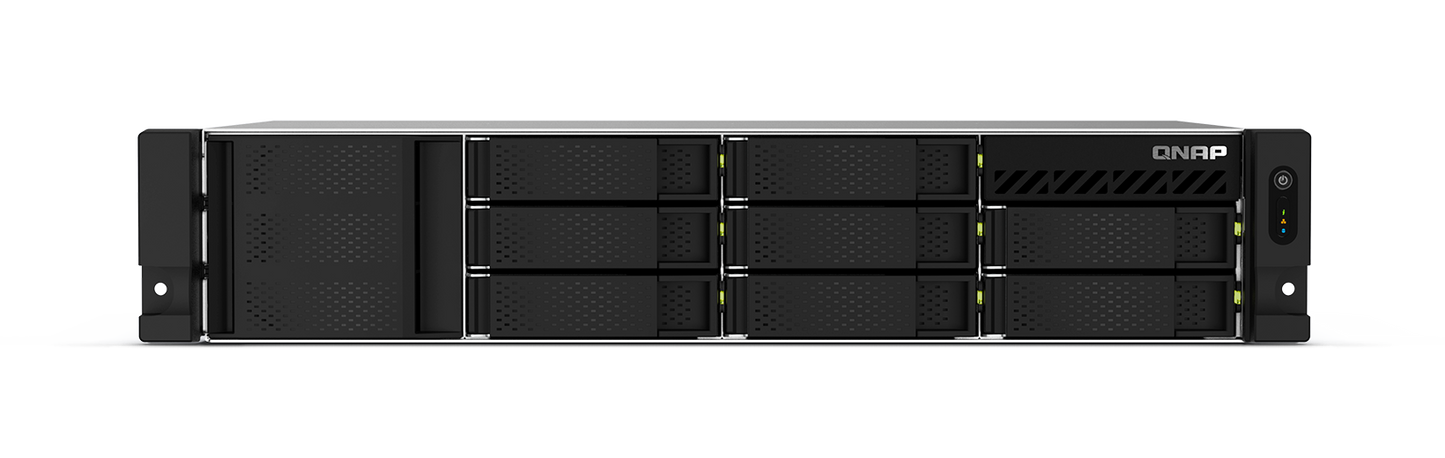

QNAP TS-864EU-8G 8-Bay 2U Short-Depth Rackmount NAS | Intel Celeron N5095 Quad-Core / 8GB DDR4 / Dual 2.5GbE / PCIe | Diskless
QNAP TS-864EU-8G 8-Bay 2U Short-Depth Rackmount NAS | Intel Celeron N5095 Quad-Core / 8GB DDR4 / Dual 2.5GbE / PCIe | Diskless
The QNAP TS-864eU is a compact 2U short-depth (12-inch) rackmount NAS powered by Intel Celeron N5095/N5105 quad-core processor with 8GB DDR4 RAM. Its short-depth design makes it ideal for installation in shallow rack cabinets, media closets, and edge locations across Qatar and the GCC where full-depth rack units cannot fit. Dual 2.5GbE and a PCIe slot for optional 10GbE expansion provide room to grow.
Key Specifications
| CPU | Intel Celeron N5095/N5105 Quad-Core (burst 2.9GHz) |
| RAM | 8GB DDR4 SODIMM (max 16GB) |
| Drive Bays | 8 × 3.5"/2.5" SATA 6Gb/s (Diskless) |
| Network | 2 × 2.5GbE RJ45 |
| Expansion | 1 × PCIe Gen3 x2 slot |
| HDMI | 1 × HDMI 1.4b |
| Form Factor | 2U Short-Depth Rackmount (12-inch depth) |
| OS | QTS (QuTS hero switchable) |
| RAID | RAID 0, 1, 5, 6, 10, JBOD |
Key Features
- Short-depth 12-inch design for shallow racks, media cabinets, and edge deployments
- 8 drive bays with 2.5GbE and PCIe slot for future 10GbE expansion
- Intel AES-NI hardware encryption for secure rack storage
- Supports QTS and QuTS hero ZFS operating systems
Contact our Doha team at sales@serverparts.qa for pricing and availability in Qatar and across the GCC.
