QNAP TS-932PX-4G 9-Bay Desktop NAS (5+4) | ARM Cortex-A57 1.7GHz / 4GB DDR4 / Dual 10GbE SFP+ + Dual 2.5GbE | Diskless
QNAP TS-932PX-4G 9-Bay Desktop NAS (5+4) | ARM Cortex-A57 1.7GHz / 4GB DDR4 / Dual 10GbE SFP+ + Dual 2.5GbE | Diskless

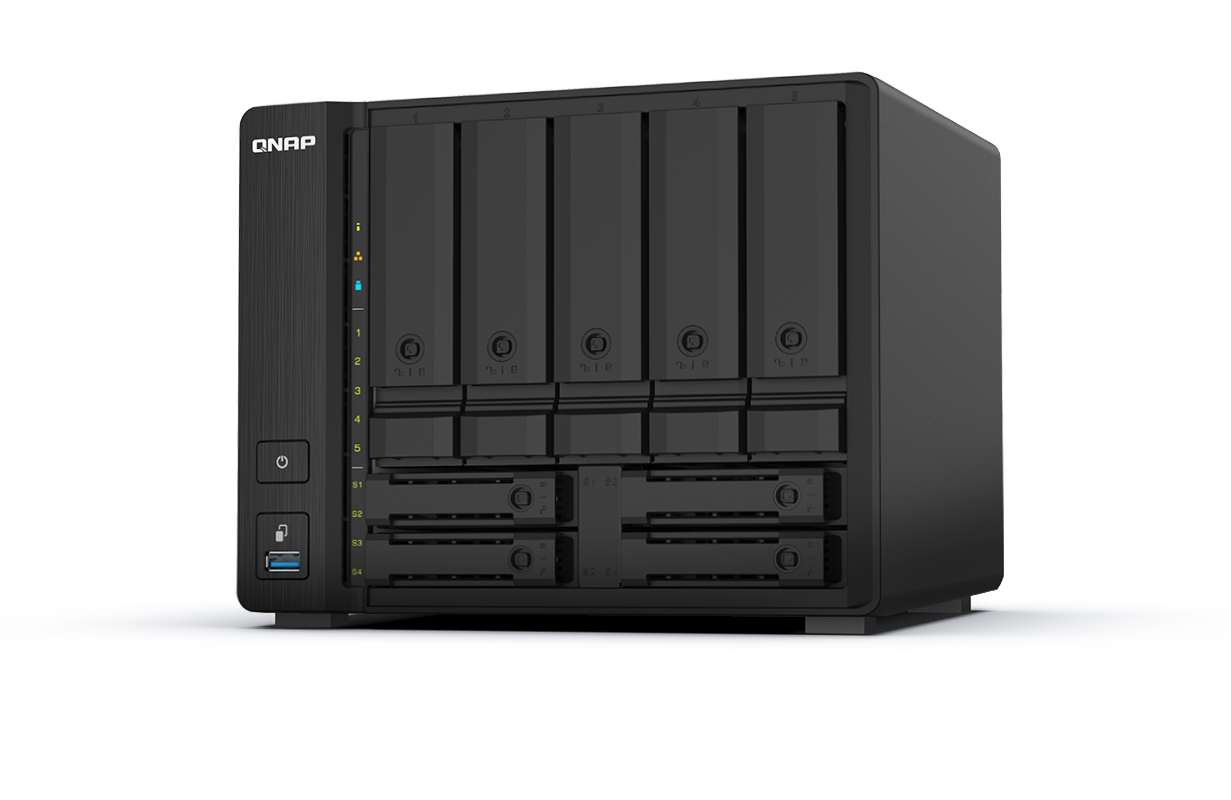

The QNAP TS-932PX is a uniquely designed 9-bay NAS that packs five 3.5-inch HDD bays and four 2.5-inch SSD bays into a compact chassis — enabling HDD/SSD hybrid storage in a device no larger than a typical 5-bay NAS. With dual 10GbE SFP+ and dual 2.5GbE ports, it delivers exceptional throughput for bandwidth-demanding applications in Qatar and the GCC. Powered by the ARM Cortex-A57 quad-core 1.7GHz Annapurna Labs AL324 processor.
Key Specifications
| CPU | Annapurna Labs AL324 ARM Cortex-A57 Quad-Core 1.7GHz |
| RAM | 4GB DDR4 SODIMM (expandable to 16GB) |
| Drive Bays | 5 × 3.5" SATA 6Gb/s + 4 × 2.5" SATA 6Gb/s (Total 9, Diskless) |
| Network | 2 × 10GbE SFP+ + 2 × 2.5GbE RJ45 |
| USB | 3 × USB 3.2 Gen 1 (5Gbps) |
| Form Factor | Desktop Tower (5-bay chassis size) |
| OS | QTS |
| RAID | RAID 0, 1, 5, 6, 10, JBOD |
Key Features
- Unique 9-bay (5 HDD + 4 SSD) hybrid configuration in a compact 5-bay footprint
- Dual 10GbE SFP+ and dual 2.5GbE for high-bandwidth multi-user access
- Use 2.5-inch SSD bays for Qtier auto-tiering or dedicated SSD pool
- Port trunking support for failover and increased throughput
Contact our Doha team at sales@serverparts.qa for pricing and availability in Qatar and across the GCC.
